The LMC Marc Series gravity separator delivers total, exact, distinct density-based separation for seed and grain — removing damaged kernels, light material, and foreign matter that screening alone cannot address. Trusted since 1941. Available through Vistasort across Canada.
A gravity separator is a precision cleaning machine that separates seed and grain by density — using a combination of airflow, deck vibration, and controlled incline to stratify product into distinct layers by weight. Unlike screens that separate by size, or color sorters that separate by visual characteristics, gravity separators target the one thing other machines can't address: density differences between good product and contaminants of the same size.

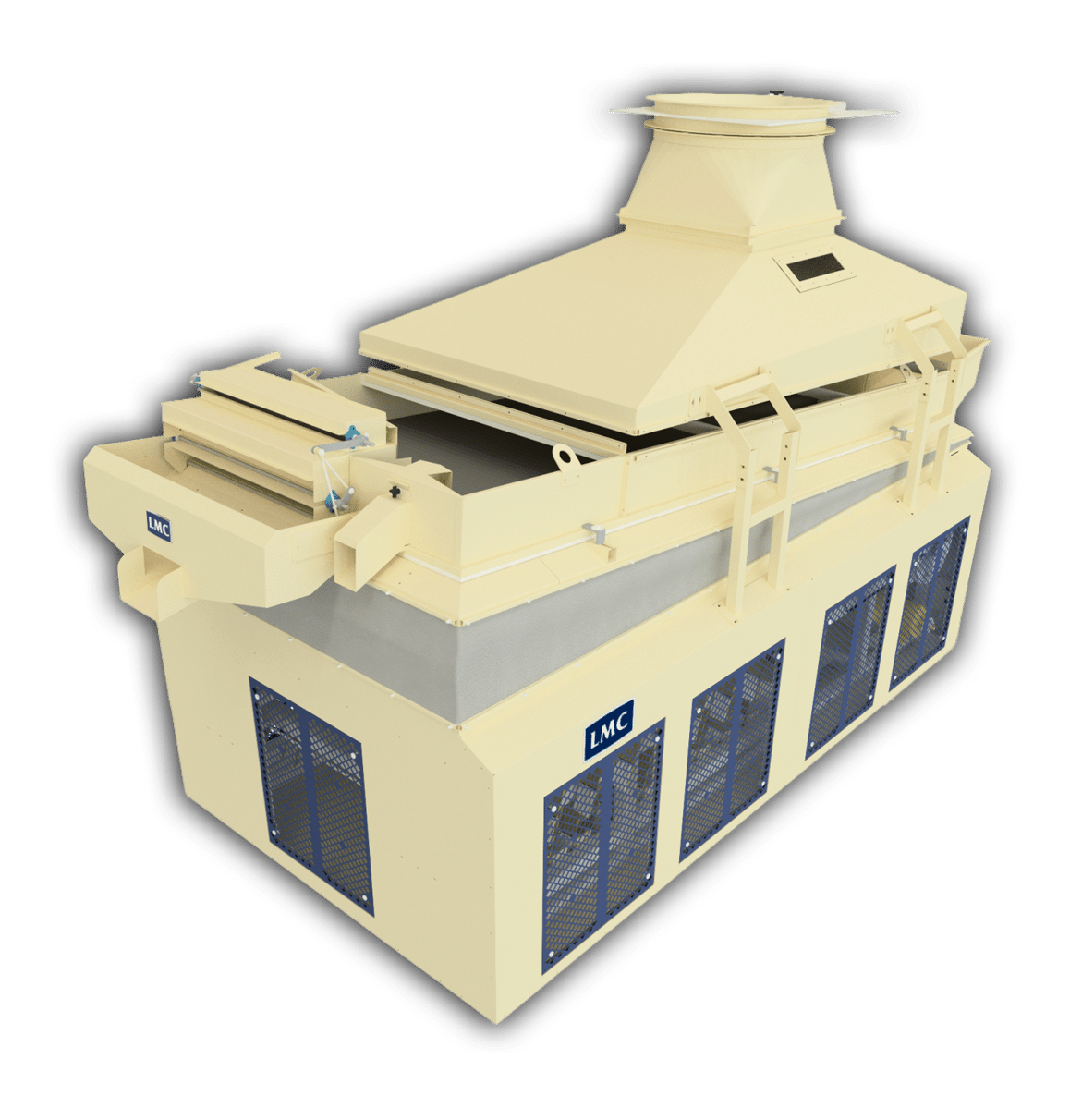

The LMC Marc Series Gravity Separator is widely recognized as one of the most reliable and precise gravity separators in the seed conditioning and grain processing industry. Originally engineered by LMC in 1941 and continually refined to meet modern processing demands, the Marc Series combines proven design with dependable, repeatable performance across virtually any dry, flowable crop.
LMC (Lewis M. Carter Manufacturing) has been engineering gravity separators since 1941, and the Marc Series remains the benchmark for precision density-based separation in seed and grain processing. LMC's continuous research and development has produced a machine that is simultaneously more precise, more durable, and easier to operate than competing designs.
The Marc Gravity Separator's unique ripple deck, automatic discharge system, and fluidized bed design give it a distinct separation advantage — producing cleaner, more consistent finished product than conventional gravity table designs. Vistasort is proud to supply and support LMC Marc Gravity Separators across Canada, backed by our experienced technical team and full parts availability.
Every feature of the Marc Series is engineered to deliver more precise separation, less operator intervention, and lower long-term operating costs.
The Marc's ripple deck surface provides greater product traction during the separation process — achieving a more complete and distinct product separation than smooth-deck designs. The ripple pattern creates the ideal conditions for density stratification at high throughput.
The pressure-driven automatic discharge system continuously senses product bed depth and adjusts the discharge gate to maintain consistent separation — eliminating the need for constant manual monitoring and adjustment as product flow fluctuates during operation.
Adjustable multi-light gates enable precise control of light product discharge, allowing operators to fine-tune the separation point and tailor output quality to exact specifications for different crops and defect profiles.
The Marc Series uses a greater bed depth than competing gravity separators — a counterintuitive advantage that actually uses the product itself to achieve more precise separations. Greater bed depth allows better density stratification throughout the entire product mass.
On-deck recirculation eliminates the need for middle cuts — reducing additional product handling that causes damage. Unlike other gravity separators that produce blended middle cuts requiring re-processing, the Marc handles it on the deck in a single pass.
The fluidized bed is created using a single, super-quiet, high-efficiency fan — providing consistent, uniform airflow across the full deck surface while minimizing noise and energy consumption compared to multi-fan designs.
The Marc's counterbalanced frame design greatly reduces operational vibration — protecting the machine's mechanical components, extending service life, and reducing noise and wear on the surrounding facility structure.
AC inverter controls with digital RPM display on both eccentric and fan motors allow precise micro speed adjustments — giving operators fine control over separation parameters without mechanical intervention.
Built with heavy-duty frames and precise mechanical design throughout, the Marc Series delivers the reliability and durability that directly impacts a processing facility's bottom line. Customers consistently report decreased repair frequency and reduced downtime versus competing designs.
The LMC Marc gravity separator uses three physical forces working together to achieve precise density-based separation in a single continuous pass.
Pre-cleaned seed or grain is fed onto the deck at a controlled, consistent rate. The product should be pre-cleaned by an air screen cleaner before entering the gravity separator for optimal separation results.
A single high-efficiency fan forces air upward through the deck surface, creating a fluidized bed condition where the product mass becomes semi-suspended — allowing density differences to drive separation.
Controlled deck vibration moves product across the ripple deck surface while airflow causes denser material to sink and lighter material to rise — stratifying the product mass into distinct density layers.
The deck's adjustable incline causes the stratified layers to travel at different speeds — heavy product moves uphill while light product flows downhill — separating them into distinct discharge streams.
The automatic discharge system continuously monitors bed depth and adjusts gates to maintain optimal separation, directing heavy product, light product, and mid-fractions to separate outlets.
Three models are available through Vistasort to match your throughput requirements — from mid-capacity processing lines to high-volume commercial operations.
| Model | Capacity | Eccentric HP | Fan HP | Best For |
|---|---|---|---|---|
| Marc 300 | 310 cu. ft. / hr | 3 HP | 7.5 HP | Mid-capacity seed processing lines and specialty crops |
| Marc 400 | 370 cu. ft. / hr | 3 HP | 10 HP | Commercial seed conditioning and edible bean processing |
| Marc 500 | 620 cu. ft. / hr | 3 HP | 15 HP | High-volume grain processing and large-scale seed operations |
* Capacities are approximate and vary by product type, density, and moisture content. Contact Vistasort for a capacity assessment specific to your crop and processing requirements. Optional features include dust hood and stainless steel product contacts.
The Marc Series gravity separator works with any dry, flowable product — making it one of the most versatile machines in a seed and grain processing facility.
Wheat, barley, oats, and other cereals benefit significantly from gravity separation — removing shrunken, frost-damaged, and diseased kernels that pass through screens but have measurably lower density than sound grain.
Lentils, peas, chickpeas, navy beans, and other pulse crops are among the most common gravity separator applications — removing splits, immature seed, and lightweight contaminants to improve export-grade purity.
High-value specialty crops with tight purity tolerances rely on gravity separation to meet export and food-grade specifications — separating off-types and damaged product that cannot be removed any other way.
Canola, flax, sunflower, and other oilseeds benefit from gravity separation to remove lightweight, immature, or damaged seeds that reduce oil quality and extraction yield in downstream processing.
Lightweight grass and forage seeds present unique separation challenges. The Marc's adjustable airflow and sensitive deck controls allow precise separation even for products with very small density differences.
Gravity separators are a critical final polishing step in seed conditioning programs — ensuring maximum germination rate and vigor by removing low-density seed that would reduce stand establishment in the field.
