A compact 2 HP three-screen seed and grain cleaner engineered for low maintenance, fast cleanout, and flexible installation. Up to 250 BPH market cleaning in a portable or stationary footprint. Supplied and supported across Western Canada by Vistasort.

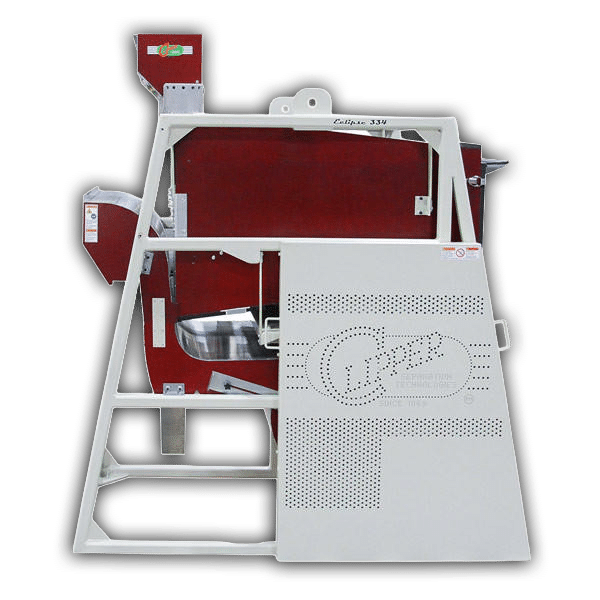

The Clipper Eclipse 334 is the second in AT Ferrell's Eclipse line of compact air and screen cleaners — designed specifically to meet the low-maintenance and fast-cleanout requirements of today's seedsman. It fills the need for a conveniently sized, versatile cleaner that can be used as either a portable unit moved between farms or installed permanently in a commercial seed plant.
At 85" tall, 53" wide, and 77" long, the Eclipse 334 weighs just 1,835 lbs and runs on a single 2 HP motor. It delivers up to 250 bushels per hour in market cleaning mode, and up to 120 BPH for precision seed cleaning — making it suitable for on-farm operations, certified seed producers, and small-to-mid-scale commercial seed plants across Western Canada.
The Eclipse 334 processes product through three staged separation steps — removing oversized material, undersized material, and lightweight contaminants in sequence for a clean, uniform finished product.
Grain or seed enters the Eclipse 334 through the surge hopper, which connects directly to an auger or vibratory conveyor. Adjustable feed rate controls ensure a consistent, uniform stream onto the top screen deck.
The top screen removes material larger than the desired seed. Oversized material — straw, clods, and large foreign matter — is scalped off and exits the front of the machine, while good product falls through to the decks below.
The two lower screen decks are configurable in split-sift or scalp-sift arrangement. Trash, weed seeds, foreign material, and split seed drop through while clean, full-size product passes over and exits to the discharge.
After screening, product is routed through a positive column of air from the bottom fan. This removes lightweight trash, chaff, and dust that mechanical screening alone cannot separate — delivering clean, market-ready product.
Throughout the entire cleaning run, rubber balls bounce continuously against the underside of each screen, dislodging plugged seed and preventing screen blinding — maintaining consistent throughput without operator intervention.
Built for the practical realities of Western Canadian seed cleaning — easy to move, fast to clean out, and reliable over many seasons of hard use.
At 53" wide × 77" long × 85" tall and 1,835 lbs, the Eclipse 334 moves easily between farm locations or installs permanently in a commercial seed plant — a rare combination of portability and commercial-grade build quality.
Rubber balls bounce continuously against each screen's underside during operation, preventing the screen blinding that reduces throughput and separation quality — without stopping the machine or requiring operator action.
A positive column of air from the bottom fan removes lightweight trash, chaff, and dust after screening. Air intake is adjustable to fine-tune separation for your specific crop weight and aerodynamic profile.
Specifically engineered for minimal maintenance and fast cleanout between seed lots — critical for multi-crop operations and certified seed production where cross-contamination control is essential to lot integrity.
Tubular steel frame with balanced counter-throw minimizes vibration and mechanical wear. The 13-ply marine-grade hardwood laminate shoe delivers long service life even in demanding continuous operation environments.
Clipper offers over 150 perforated metal and wire cloth screen sizes to accommodate virtually all agricultural commodities — from fine grass seed to large edible beans, corn, and specialty crops grown across Western Canada.
Complete machine dimensions, weights, and performance specifications for the Clipper Eclipse 334.
| Specification | Value |
|---|---|
| Model | Eclipse 334 |
| Manufacturer | AT Ferrell / Clipper Separation Technologies |
| Motor | 2 HP |
| Screen Decks | 3 decks — 34" × 34" per deck |
| Screen Flow | Scalp / Sift / Sift (configurable) |
| Screen Cleaning | Ball tray system |
| Air System | Bottom fan — positive air column |
| Frame | Heavy-duty tubular steel, balanced counter-throw |
| Shoe Material | 13-ply marine-grade hardwood laminate |
| Installation | Portable or stationary |
| Screen Options | 150+ perforated metal and wire mesh sizes |
| Dimension / Capacity | Value |
|---|---|
| Overall Height | 85 inches |
| Overall Width | 53 inches |
| Overall Length | 77 inches |
| Weight | 1,835 lbs |
| Market Cleaning | Up to 250 BPH |
| Precision Cleaning | Up to 120 BPH |
| Inlet Connection | Auger or vibratory conveyor |
| Authorized Dealer (CA) | Vistasort — Saskatoon, SK |
* Capacity figures for typical commodities under normal operating conditions. Contact Vistasort for crop-specific capacity guidance.
The Eclipse 334's 150+ screen options and adjustable air separation handle virtually all Western Canadian seed and grain commodities.
Excels at market and precision cleaning of cereal crops. Removes scalped material, siftings, and lightweight material in a single pass — meeting grade requirements for wheat, barley, oats, rye, and durum.
Lentils, peas, chickpeas, and edible beans can be precision-cleaned with the right screen selection. The adjustable air column removes lightweight splits and foreign material without affecting whole, healthy seed.
Fine-screen configurations for canola and small oilseeds take advantage of the adjustable air system, which can be fine-tuned to the aerodynamic profile of small, lightweight oilseed varieties.
The Eclipse 334's portability makes it especially popular for on-farm grass and forage seed cleaning — moved to each producer's location for harvest cleaning with the air system tuned to each variety's weight range.
For certified seed production, the easy cleanout design is essential — eliminating volunteer seed between varieties quickly and thoroughly before restarting with the next seed lot on the cleaning schedule.
In fixed commercial installations, the Eclipse 334 serves as a pre-cleaning or secondary cleaning stage — handling overflow volumes or operating as a first-pass machine before a larger precision cleaner downstream.
Understanding where the Eclipse 334 fits in the Clipper product line — and when to step up to a larger machine for your operation.
Three 34" × 34" screen decks. 2 HP motor. 1,835 lbs. Portable or stationary. Ideal for on-farm seed cleaning and small-to-mid seed plants handling moderate volumes.
54"-wide screens with 6,400 CFM fan. Two configurable flow patterns. For operations that have outgrown the Eclipse line and need higher-volume commercial cleaning.
Two 86" screen decks. Used as the first stage in multi-step cleaning lines before precision cleaners downstream. High throughput, high volume.
Vistasort's team has been matching Clipper machines to Prairie seed and grain operations for over 40 years. Tell us your crops, volumes, and processing goals — we'll recommend the right Clipper cleaner for your situation and budget.
Vistasort is Western Canada's authorized Clipper Separation Technologies dealer — with over 40 years of seed and grain processing experience behind every equipment sale.
Clipper Separation Technologies, manufactured by AT Ferrell Company, is one of North America's most respected seed and grain cleaning brands — trusted since 1869. Vistasort is the authorized Clipper dealer for Western Canada, supplying, installing, and supporting the full Clipper line across Saskatchewan, Alberta, and Manitoba.
Vistasort has been equipping seed and grain processing facilities across Western Canada since 1986. We know Prairie crops, Prairie conditions, and the standards processors need to meet for domestic and export markets.
Because Vistasort supplies the full equipment portfolio — air screen cleaners, aspirators, gravity separators, color sorters, screens, and conveyance — we can integrate the Eclipse 334 as part of a complete cleaning line, not just a standalone sale.
Vistasort is based in Saskatoon, Saskatchewan — providing Canadian-based service, parts availability, and technical support for every Clipper machine we supply. A local partner who responds quickly when it matters most.
With 150+ screen size options, selecting the right configuration for your crops and volumes matters. Vistasort provides screen selection guidance and operational setup support to get you cleaning effectively from day one.
Answers to the most common questions about the Eclipse 334 from seed and grain producers across Western Canada.
Tell us your crops, volumes, and processing setup — Vistasort will recommend the right Eclipse configuration and screen selection for your operation.
The Eclipse 334 works best as part of a complete cleaning line. Explore the other Clipper machines and processing equipment Vistasort supplies across Western Canada.
