Clipper Super 228D Air Screen Cleaner
A wood-frame Clipper workhorse that scalps, sifts, and aspirates in one pass. Two 54 x 60 inch screens, a top suction fan, and ball trays, rated at 100 to 150 bushels per hour on seed wheat.

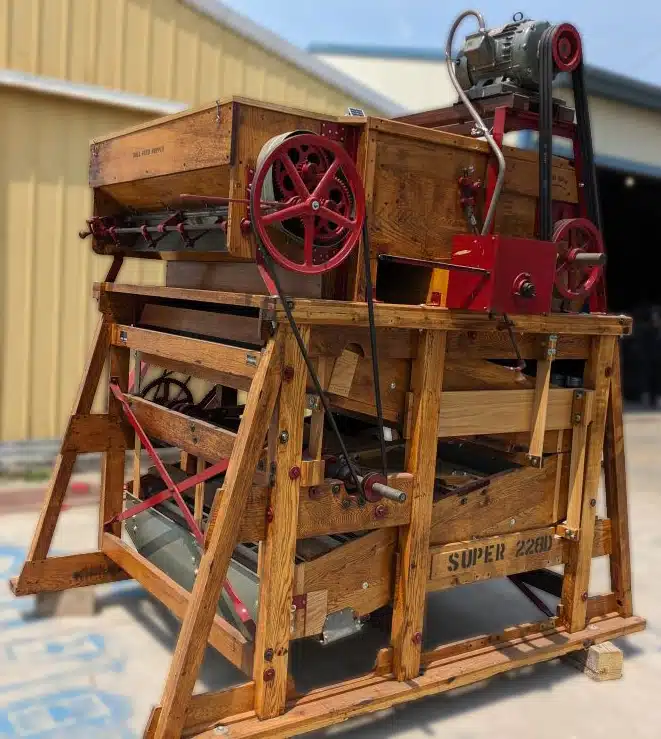

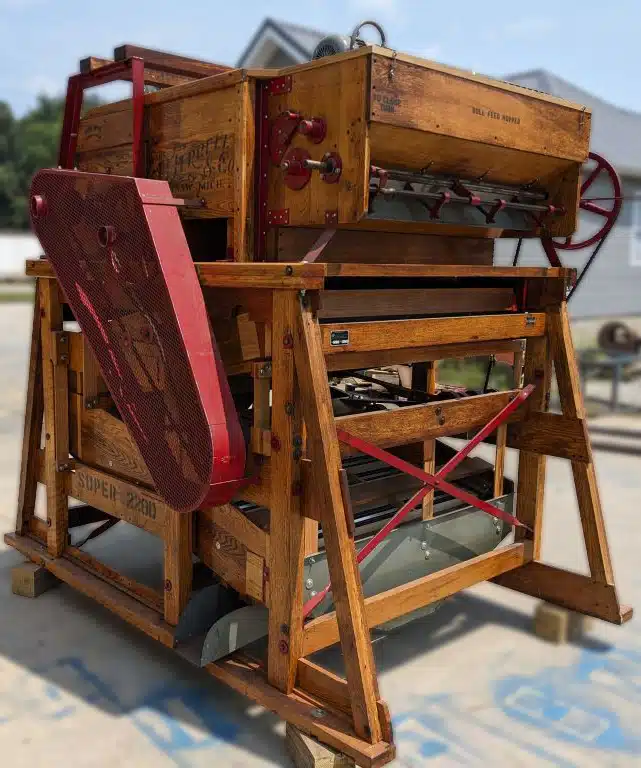

I. A Proven Clipper Air Screen Cleaner
The Super 228D is a high-capacity air screen cleaner. It became one of Clipper's most popular models because it is simple, sturdy, and versatile. It handles fast grain and bean conditioning at high volume, and with closer screens it does precise cleaning at reduced capacity.
Its two large screens sit in separate shoes pitched in opposite directions, so grain travels across most of the width and length of both screens. That layout gives a better separation at high capacity than a single deck of the same size.
- Scalps, sifts, and aspirates in one machine
- Two 54 x 60 in screens in independent shoes
- Top suction fan with adjustable air control
- Ball trays keep screens open
- Roll feed hopper for an even, full-width flow

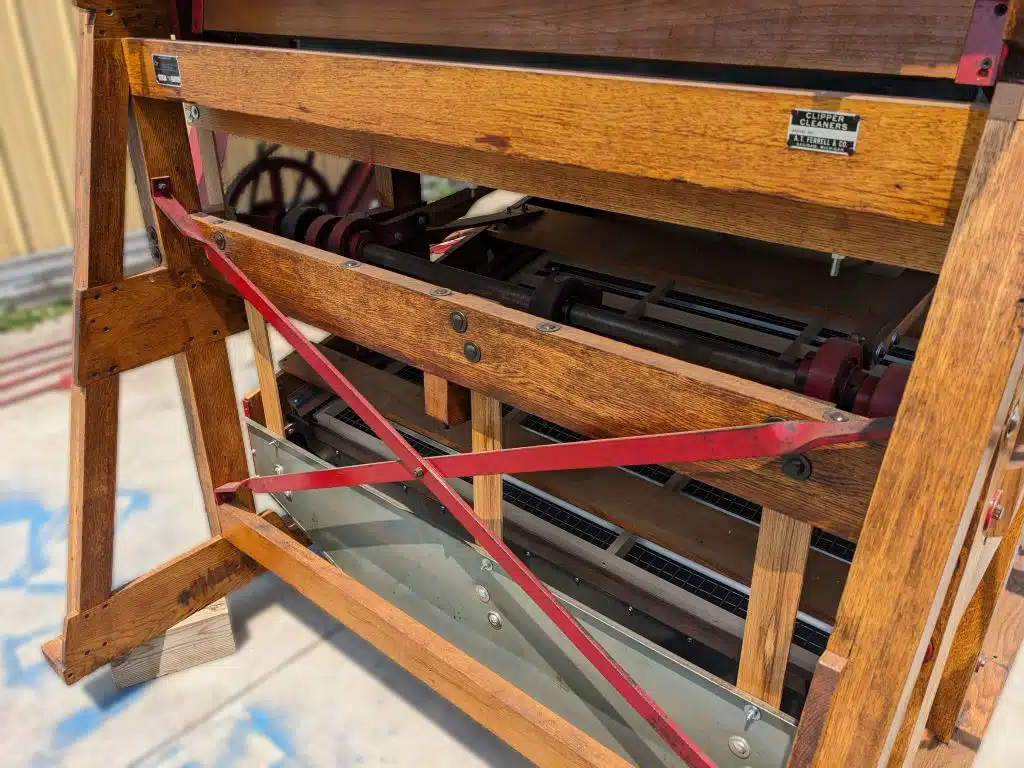

- Four ball bearing eccentrics with counterbalancing
- Fits anywhere in a cleaning line
II. How the Clipper Super 228D Works
Grain moves through six stages from the hopper to the clean discharge spout.
Roll Feed

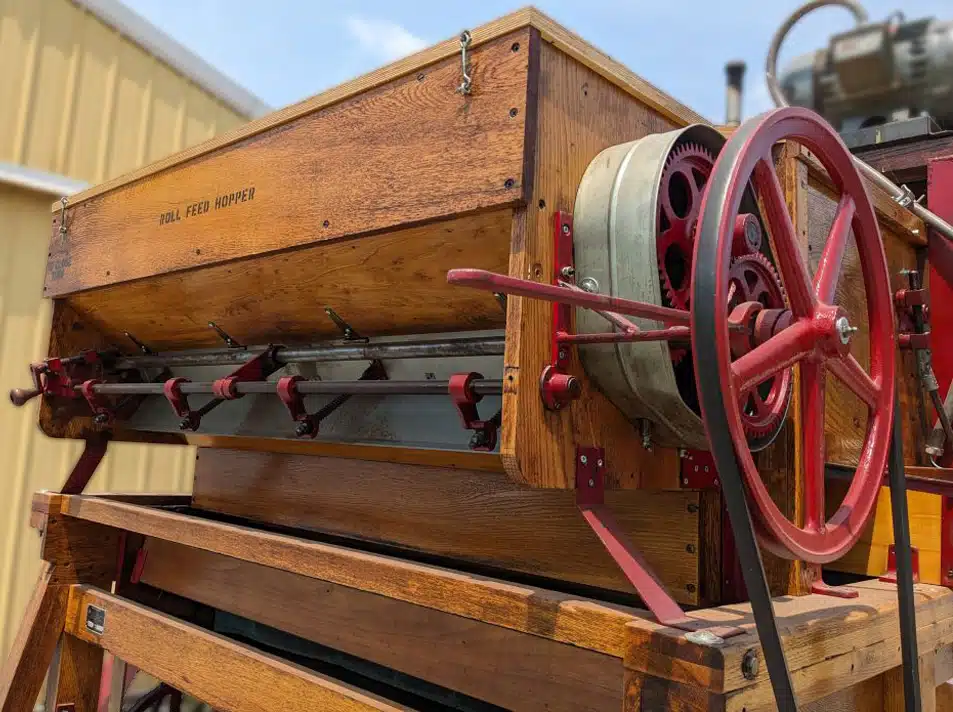

A slowly turning fluted roll in the hopper feeds an even flow of grain across the full width of the top screen.
Aspiration

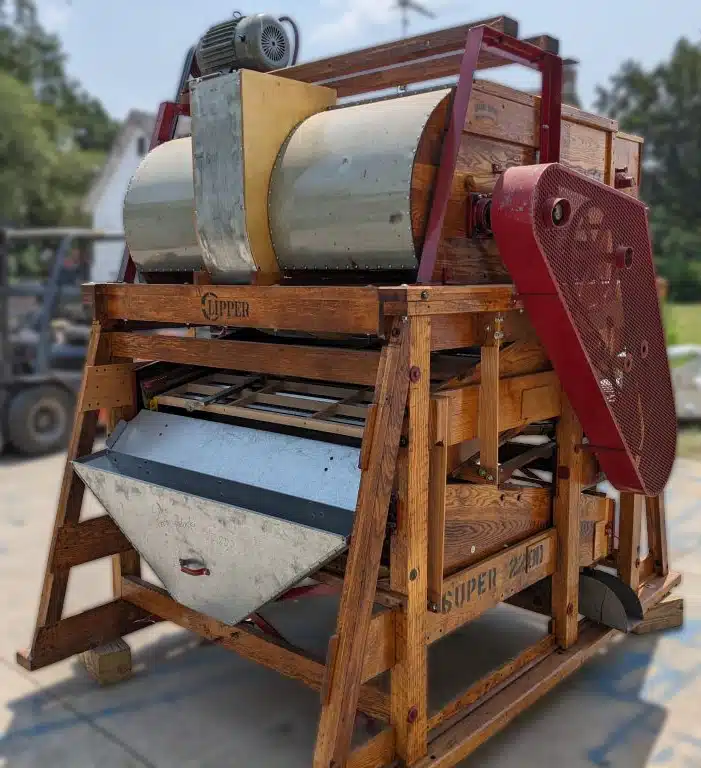

A large suction fan draws air up through the falling grain and pulls out lightweight trash before it reaches the top screen. Heavier trash settles in a chamber and leaves through a catch-all spout. A control valve near the discharge spout sets the air flow.
Scalping
The top screen removes sticks, stems, stones, and other large trash. The grain drops through and a pan carries it to the bottom screen.
Finishing

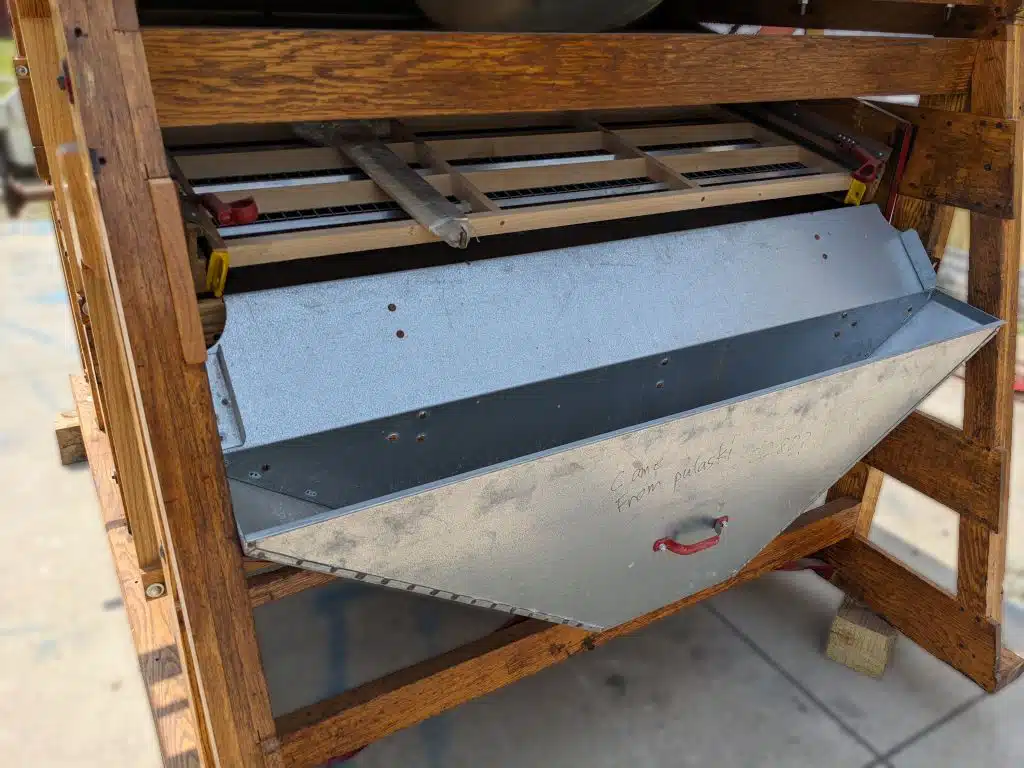

The bottom screen holds up the good grain and drops broken, undersized, and weak kernels and small foreign material to a pan underneath.
Fines Discharge
Material that passes through the bottom screen discharges into a spout at the side of the cleaner.
Clean Discharge
Clean grain runs over the bottom screen into the tapered discharge spout, which has a 6 x 12 in opening.
III. Specifications
| Specification | Clipper Super 228D |
|---|---|
| Condition | Reconditioned |
| Manufacturer | Clipper (A.T. Ferrell Company) |
| Model | Super 228D, wood frame |
| Screen size | 54 x 60 in |
| Screens in cleaner | 2: top scalping screen and bottom finishing screen |
| Screens included | Screens for wheat, barley, and oats |
| Rated capacity, seed wheat | 100 to 150 bushels per hour |
| Aspiration | Top suction fan with adjustable control valve |
| Horsepower required | 5 HP |

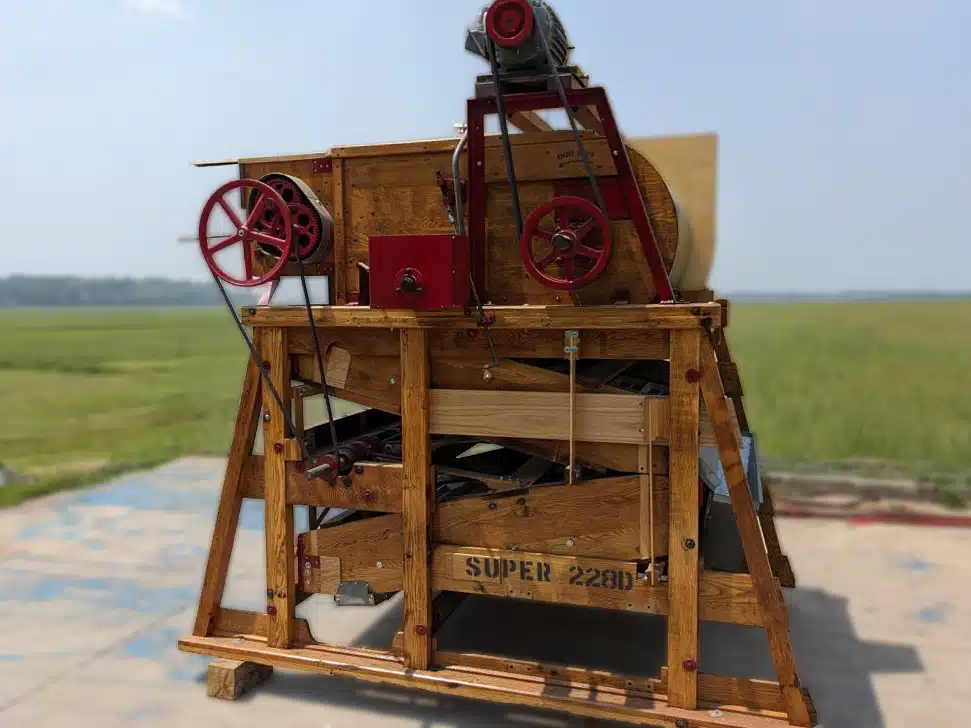

| Extreme height | 85 in, plus 18 in with a top-mounted motor, as on this unit |
| Extreme length | 102.5 in |
| Extreme width | 77 in |
| Height where grain enters | 85 in |
| Shipping weight | 2,340 lb |
Screen size, horsepower, dimensions, and weight are from the original Clipper Super 228D brochure, A.T. Ferrell Company, printed November 1957. Contact us to confirm details for this unit.
IV. Questions About the Super 228D
Where is the Clipper Super 228D located?
It's at Vistasort's shop at 835-58th Street East in Saskatoon, Saskatchewan. Contact us to arrange a time to see it.
Which screens come with the Clipper Super 228D?
Screens for wheat, barley, and oats are included.
How many bushels per hour does the Clipper Super 228D clean?
It's rated at 100 to 150 bushels per hour on seed wheat. Output depends on the crop, its condition, and the screens you run.
Can I see the Clipper Super 228D running before I buy?
Yes. You're welcome to make an appointment to inspect it in person in Saskatoon before you buy.
Do you deliver, and can you install it?
Yes, delivery is available if you need it, though most buyers pick up from our Saskatoon shop. Installation can be arranged.
Interested in the Clipper Super 228D?
Reconditioned and priced at $23,940 CAD. Ask us about the unit, arrange a viewing, or get help fitting it into your line.
